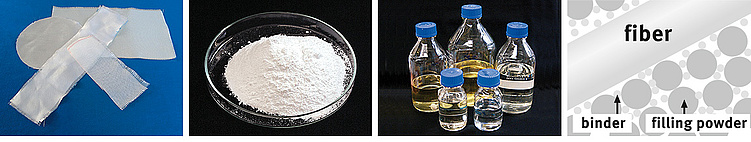

From left to right: Different fabrics made of continuous ceramic fibers, like 3M™ Nextel™ 610, Powder in the system Al2O3 - SiO2,
Binder in the system Al2O3-SiO2 - ZrO2, Principle design of the Ox/Ox-CMC

Material Basics

What means „Keramikblech“/„sheet ceramic“
“Keramikblech” is an oxide/oxide ceramic matrix com­posite. The standard ma­ter­ials were developed by the com­pany Walter E.C. Pritzkow Spezialkeramik. Since 2001 in close cooperation with Fraunhofer Institut für Silicat­forschung improved oxide / oxide ceramic matrix com­po­sites based on the fiber 3M™ Nextel™ 610 were devel­oped.

All this oxide/oxide ceramic matrix com­po­sites based on fabrics with con­tinuous ceramic fibers in the system Al2O3-SiO2 and matrix mate­rials in the system Al2O3-SiO2-ZrO2.

With these ma­te­rials we want to satisfy our users who are searching for mate­rials with the positive charac­teris­tics of metals like damage tol­erance and thermal shock re­sist­ance and the positive charac­teris­tics of ceramic like tem­per­a­ture resist­ance and corrosion resis­tance.

Production method of “Keramikblech”, a textile based oxide/oxide ceramic matrix composite, (please click to enlarge)

Damage tolerant fracture behavior Ox/Ox-CMC

Please click to enlarge

“Keramikblech” shows the
damage tolerant behavior
characterized by the fiber pullout effect.
