Fracture behavior of standard AvM1415N and new development FW12

Within a gov­ern­ment funded ZIM-project in coop­era­tion with “Fraunhofer Institut für Silicat­forschung” new mate­rials were devel­oped. The basis for this devel­op­ments were the fabrics Nextel 610/1500 normally used from Walter E.C. Pritzkow Spezialkeramik and matrix mate­ri­als of pure Al2O3 and Al2O3/3YSZ (Material FW12).

With in the gov­ern­ment (BMBF/Projekt­träger Jülich) funded project Höcker the mechan­ical properties of the new mate­rial FW12 and the standard AvM1415N were validated by Fraunhofer Institut für Werkstoff­mechanik.

Fracture behavior of FW12 (5 samples) at 3-point bending test

Investigations done by Fraunhofer Institut für Silicatforschung
within the funded ZIM-project, (please click to enlarge)

Fracture behavior of standard AvM1415N and new material FW12 at 4-point bending test

Investigations done by Fraunhofer Institut für Werkstoffmechanik, (please click to enlarge)

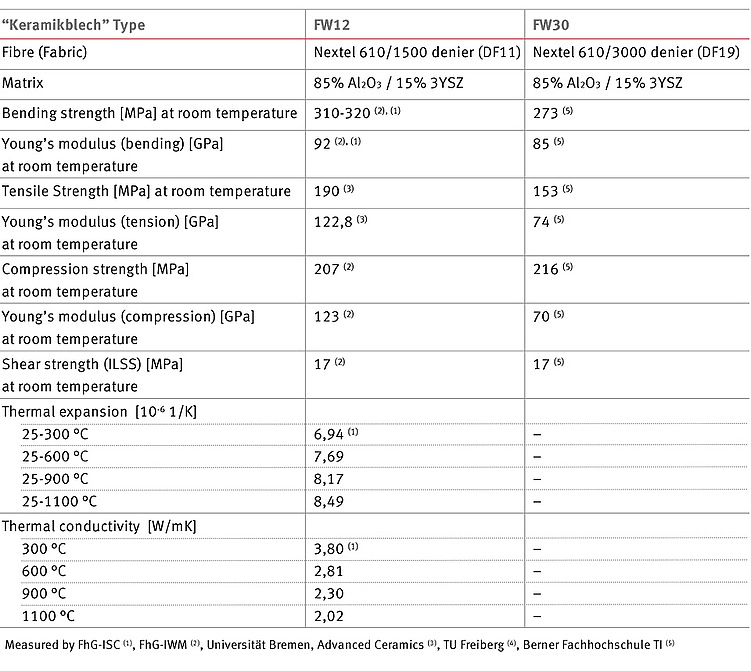

Oxide/oxide ceramic matrix composite „Keramikblech“, new materials

Further data sheets and publications – see also: Downloads
